Tiverton Water Supply System Expansion Project

Project Overview

The Municipality of Kincardine is undertaking a project to expand the Tiverton drinking water supply system to ensure reliable service for current and future needs.

Following a Municipal Class Environmental Assessment process, the preferred solution is to connect the Tiverton drinking water system to the Kincardine Drinking Water System through a new water booster pumping station located at 3194 Bruce Road 15 in Inverhuron Park.

This solution was selected after technical review, evaluation of alternative options, and public consultation. It will improve long-term system reliability, eliminate the immediate need to replace an existing Tiverton well, and reduce long-term maintenance and operating costs.

3194 Bruce Road 15, Inverhuron

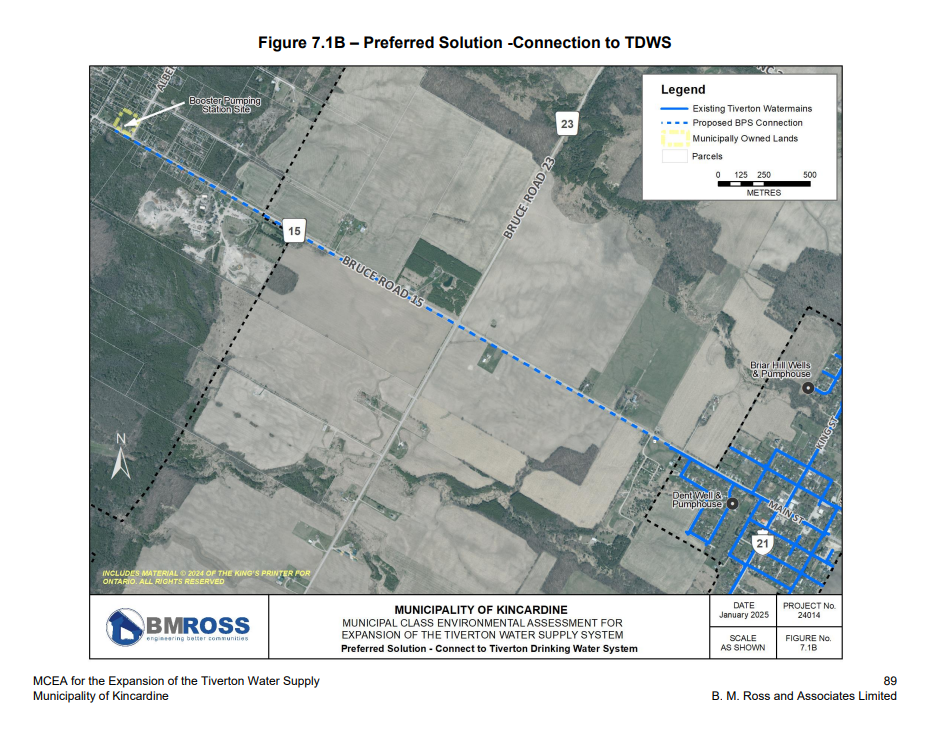

Connection to Tiverton Drinking Water system

Why this project matters

The Municipality’s 2023 Water and Wastewater Master Plan found that the Tiverton Drinking Water System is already operating close to its capacity and will not be able to support future growth. In addition, parts of the existing well system are aging and will eventually require major upgrades.

To ensure a reliable drinking water supply for residents now and into the future, the Municipality reviewed several long-term options which included an Environmental Assessment and opportunities for public to input through Public Information Centres and written submissions.

Council Direction

At its meeting on September 10, 2025, Council received the report Tiverton Water EA and Costs (Environmental Services-2025-23) and adopted a resolution to:

  • Issue the Notice of Expansion of the Tiverton Water Supply System Municipal Class Environmental Assessment Environmental Study Report (ESR) for a 30-day public review period, and

  • Proceed with the preferred solution identified through the Environmental Assessment process, which includes construction of a booster pumping station and connection to the Kincardine Drinking Water System.

  • The estimated project cost of $5.4 million was included in the 2026 budget.

Municipal staff have continued to advance the project in accordance with this Council direction.

Environmental Assessment Process

The project followed the Municipal Class Environmental Assessment (MCEA) process, which evaluates infrastructure solutions while considering environmental, technical, and financial factors.

Municipal Class Environmental Assessment for Expansion of the Tiverton Water Supply System

Site Preparation Work

Vegetation removal work occurred at the proposed booster pumping station location within Inverhuron Park in early March, 2026.

This work was completed at this time to ensure it occurred outside of the protected bird nesting window, which restricts vegetation removal during the spring and summer months. Completing this work within the permitted environmental timing window helps prevent delays to the project schedule.

Tree replacement will be undertaken in accordance with the Municipality’s Tree By-law and policies. The Municipality will replace trees at a 2:1 ratio, with replacement locations to be determined as the project progresses.

Site preparation activities are a standard step in advancing infrastructure projects following Council direction and environmental approvals.

Project Timeline

The project is currently in the design and planning phase.

The Environmental Assessment process has been completed and the project is now advancing through preliminary and detailed design, approvals, and funding considerations.

Once the design is finalized and funding is confirmed, the project will proceed to the tender stage. At that time, additional information about construction timing, park access, and project implementation will be shared.

Anticipated project phases include:

  • Detailed design and approvals
  • Tender and contractor procurement
  • Site preparation and servicing work
  • Booster pumping station construction
  • Watermain connection to the Kincardine drinking water system
  • Site restoration and landscaping

Updates will be shared on this page as the project progresses and additional details become available.

Frequently Asked Questions

A municipal study found the Tiverton water system does not have enough reserve capacity to support expected growth and development.

In addition, some infrastructure within the existing well system is aging and will eventually require replacement.

The project is intended to ensure reliable, sustainable drinking water for the community over the long term.

Yes. The Tiverton Drinking Water System meets Ontario Drinking Water Standards and remains safe for residents.

The project focuses on future water supply capacity and reliability, not an immediate water quality concern.

The preferred solution is to:

  • Connect Tiverton to the Kincardine drinking water system
  • Construct a booster pumping station in Inverhuron
  • Install a watermain along Bruce Road 15 connecting to Tiverton

This option provides a dependable long-term supply and reduces reliance on aging groundwater wells.

After evaluating multiple alternatives, this option was preferred because it:

  • Provides sufficient water supply for future growth
  • Improves system reliability
  • Reduces potential water quality concerns associated with groundwater
  • Avoids the need to drill multiple new wells
  • Has a lower estimated cost than expanding the well system

The project would include:

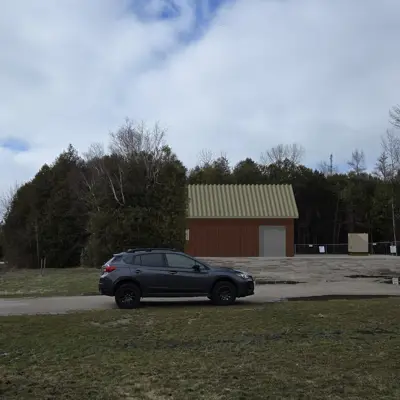

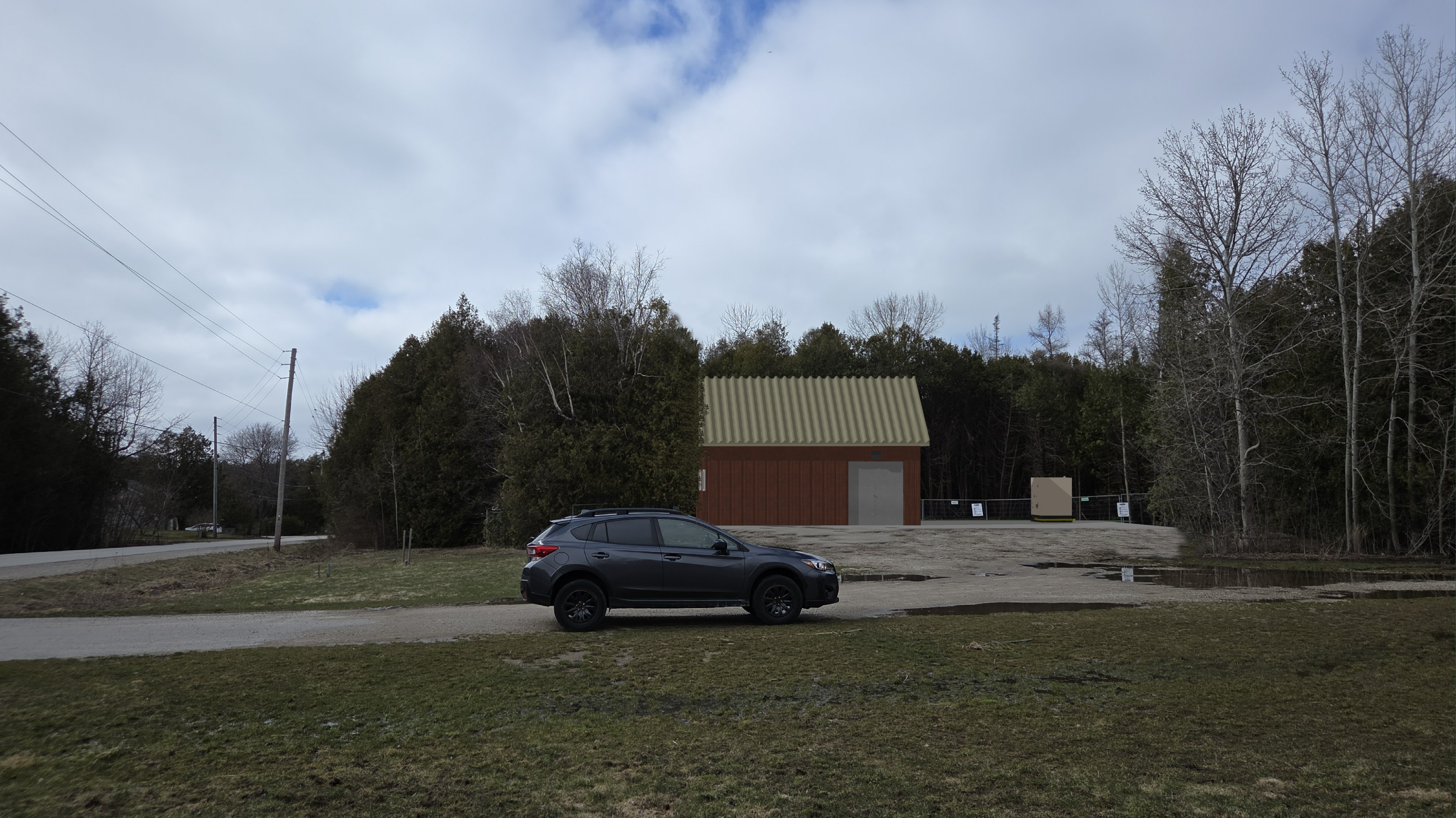

Booster Pumping Station

  • Located near Inverhuron Park
  • Approximately 9.8 m × 9.8 m (32 ft × 32 ft)
  • Includes electric pumps and a backup generator

Watermain

  • Installed along Bruce Road 15
  • Connects the Kincardine system to Tiverton

The preliminary cost estimate is approximately $5.4 million (plus HST).

Funding sources may include:

  • municipal water reserves
  • water rates
  • development charges
  • potential grant funding

An analysis of the project costs and funding sources is expected to come forward to Council in April 2026.

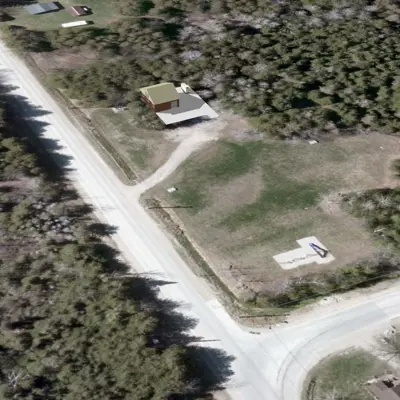

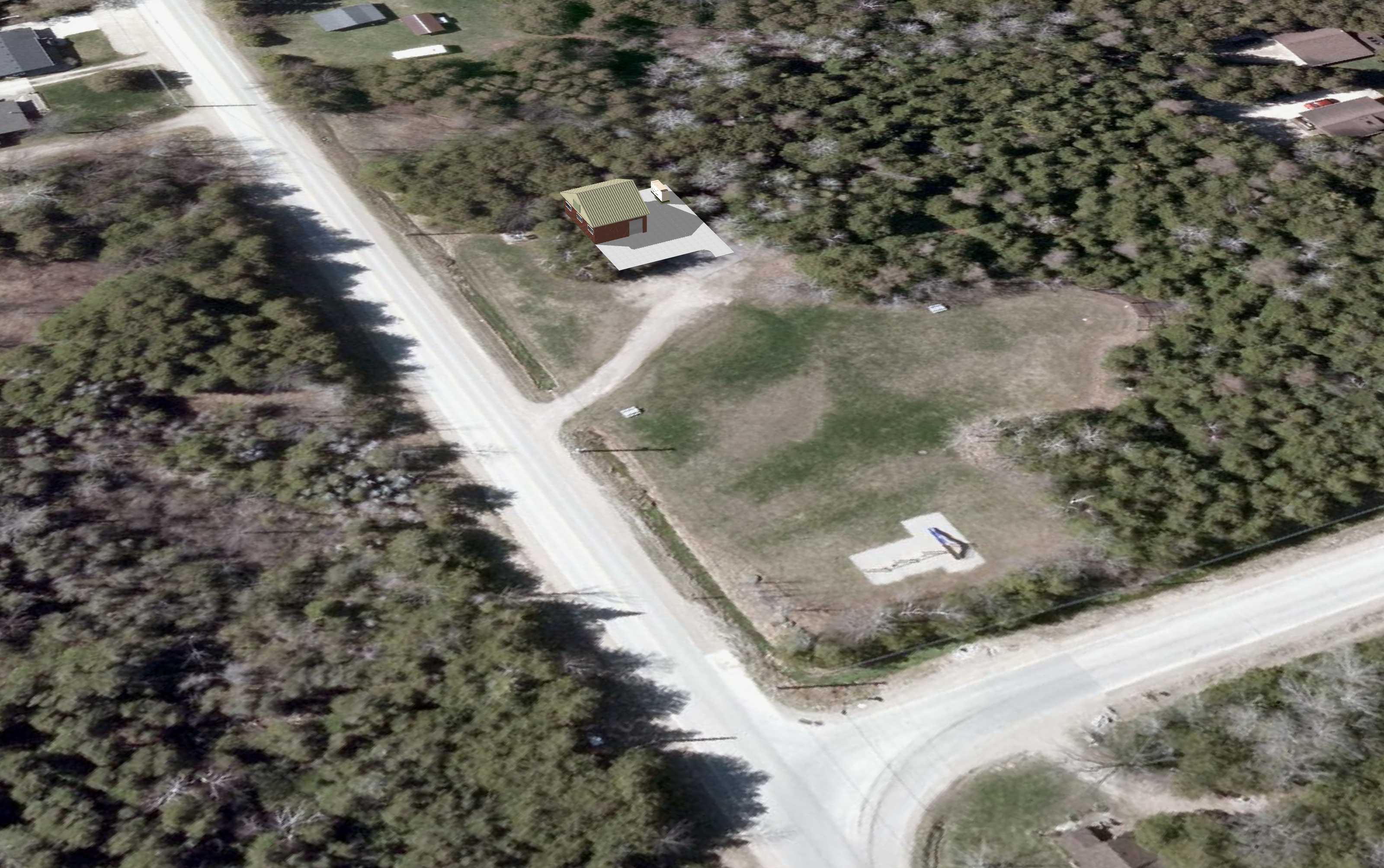

The proposed pumping station would occupy a small portion of land in the southwest corner of the park.

Most of the park will remain available for public use, and the basketball net remains in place and available. For public safety, staff will install temporary fencing around the area where tree stumps remain near the basketball court to prevent access while the site is in its current condition.

As part of the project, the parking area is anticipated to be finished with an asphalt surface once construction is complete, however final design details remain subject to Council decisions and future design phases.

Some temporary impacts or restricted areas may be required during construction for safety. These may include construction noise, traffic disruptions and temporary water service interruptions. Details will be shared once construction timelines are finalized.

Once the construction details are confirmed, there will be an opportunity to discuss future park enhancements.

The Environmental Assessment process has been completed and the project is now in the design and planning phase.

Next steps include:

  • Preliminary and detailed design
  • Project approvals and funding considerations
  • Tender and contractor procurement
  • Construction planning

Once the design is finalized and the project proceeds to tender, additional updates and details about implementation and timing will be shared.

Contact the Project Team

Adam Weishar, C.E.T.
Director of Infrastructure and Development
Municipality of Kincardine
519-396-3468 ext. 7121

Lisa Courtney
Environmental Planner
B.M. Ross and Associates
888-524-2641
